8000BPH Hot Fill Bottling Machine , Complete Beverage Production Line

8000BPH Hot Fill PET Bottling Lines , Complete Beverage Production Line

Full Automatic 8000BPH Fruit Juice Hot Filling Machine / Complete PET Plastic Bottled Juice Beverage Production Line

Sunrise series of juice production line are mainly used for the Non-carbonated drink such as Juice / Tea / Beverage / Coffee / Milk / Water and so on, with optional capacity from 3,000 to 36,000BPH. The juice plant design is shorten the time for the drink material contact with outside, increased the sanitation condition and throughout and economy benefit

Full Automatic 8000BPH Fruit Juice Hot Filling Machine General introduction:

Factory Price Complete Juice Plastic Bottle Production Line is consisted with bottle blowing machine, 3 in 1 filling machine, labeling machine, film packaging machine and ink jet printer.

Customize turn-key project complete line for various capacities based on your requirements.

This line is suitable for different kinds of hot filling beverages such as orange juice, apple juice, milk beverage and etc,.

This Complete juice Bottling Plant is used to produce polyester bottled Juice / Tea / Beverage / Coffee / Milk / Water and so on.

Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Remark: This production line is suitable for PET plastic bottles, we also offer production lines used for glass bottles, cans and so on.

Our Automatic Bottle Fruit Juice Filling Production Line can be suitable for 0.5 to 2L different PET bottles and capacity for 3000-36000BPH.

Professional Solution Provider:

Sunrise Intelligent Equipment

--------Professional manufacture company based in China

--------Specializing in one-stop A to Z complete production line of water/beverage and factory construction.

--------Full scale of pre/after-sale services including factory layout design, bottle design and profit calculation.

With over 1000 successful customer cases from all over the world and rich experience in complete solutions, we assure you the best customer experience and customization services.

Full Automatic 8000BPH Fruit Juice Hot Filling Machine Flow chart:

Part1: bottle blowing system:

PET Preforms→ heat preform→ stretch→ blowing→ bottles

Part2: water treatment system:

Raw water tank→Water resource pump→Silica sand filter→Active carbon filter→Precision filter→Reverse Osmosis→High-pressure pump→Oxidizing tower→Ozone generator→Stainless steel tank→Pipes and valves→Electric control

Part3: mixing system:

Syrup melting tank→Juice preparing tank with thermal & blender→Double heads filter→Juice de-oxygenation machine→Juice homogenizer→High level juice tank→UHT Sterilizer→Heat insulation storage tank→Syrup & beverage pump→Semi-auto CIP system→Pipes and valves→Control cabinet

Part4: filling system:

3 In 1 Filling machine; Air conveyor; Bottle unscrambler; Flat conveyor; Air compressor) →Lighter checker→Bottle dryer

Part5: packing system:

Labeling machine→Code Printer→Package machine→Pallitizer→Film wrapper

Full Automatic 8000BPH Fruit Juice Hot Filling Machine Parameters:

8000BPH Hot Fill Bottling Machine

AS1210 Beverage Production Line

8000BPH Beverage Production Line

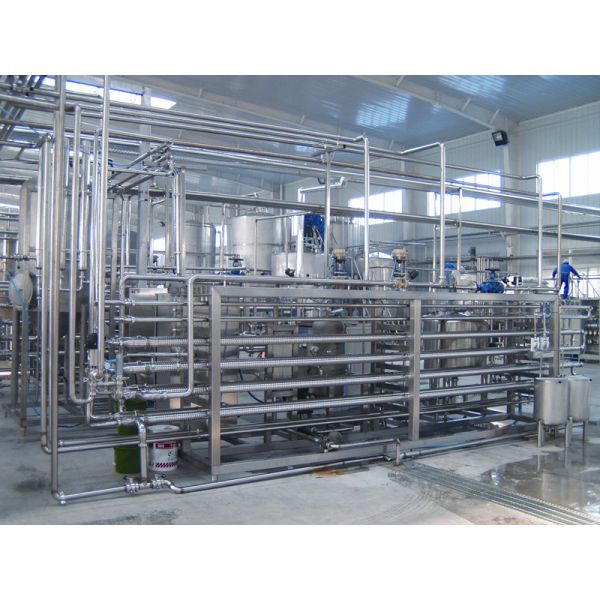

8000BPH Hot Fill Bottling Machine , Complete Beverage Production Line Images
